Inspired Sealed 135mm Rear Disc

Product code: 13789

Overview
Additional Information
Questions

Gloss Black, 12mm Through Axle	$84.66
M6 Bolt	$84.66
Satin Black, 12mm Through Axle	$101.59

Sold out

M6 version now Satin Black finish only!

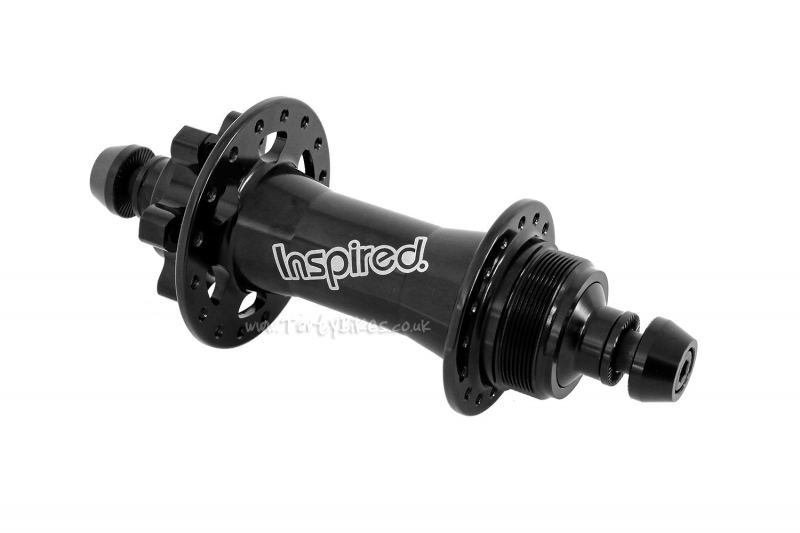

Tough, lightweight 135mm disc hub from Inspired.
As used on their Pro spec bikes!

- High quality and super durable rear hub from Inspired!
- Available in M6 bolt and 12mm through axle versions to fit a wide variety of frames.
- 135mm spacing is suitable for most 26" and many 24" trials frames.
- ISO disc mount allows the use of a disc brake.
- 1.37" x 24tpi thread on the drive side to accept a screw-on freewheel or sprocket.
- Fully CNC machined aluminium hubshell.
- Machined hub flange keeps weight low.
- 10mm steel axle on the M6 version is hollow all the way through providing great strength without adding too much weight.
- 12mm axle version also features a hollow axle all the way through for increased strength.
- Fully sealed cartridge bearings throughout for maximum longevity.
- Serrated axle bolt washers on the M6 version help keep the wheel clamped in place rather than moving around in your dropouts.
- Available in Gloss Back OR Satin Black, 32h only.
- Weight: M6 version - 293g (including bolts and washers) / 12mm through axle version - 193g

Hub Dimensions

Non Drive Side:
- Flange Diameter: 58mm
- Centre to Flange: 33mm

Drive Side:
- Flange Diameter: 45mm
- Centre to Flange: 36mm
