This bike is built in our workshop before dispatch, and we often have a queue. The current lead time can be seen by adding this bike to your basket. Some basic assembly is required on arrival, we are happy to help if you need.
- Great value complete bike from Clean!
- Tapered head tube, integrated sprung tensioner, high quality parts kit.
- Suggested rider height: 970 - 4ft 7in/1.40m - 5ft 7in/1.70m / 1010 - 5ft / 1.50m and up.

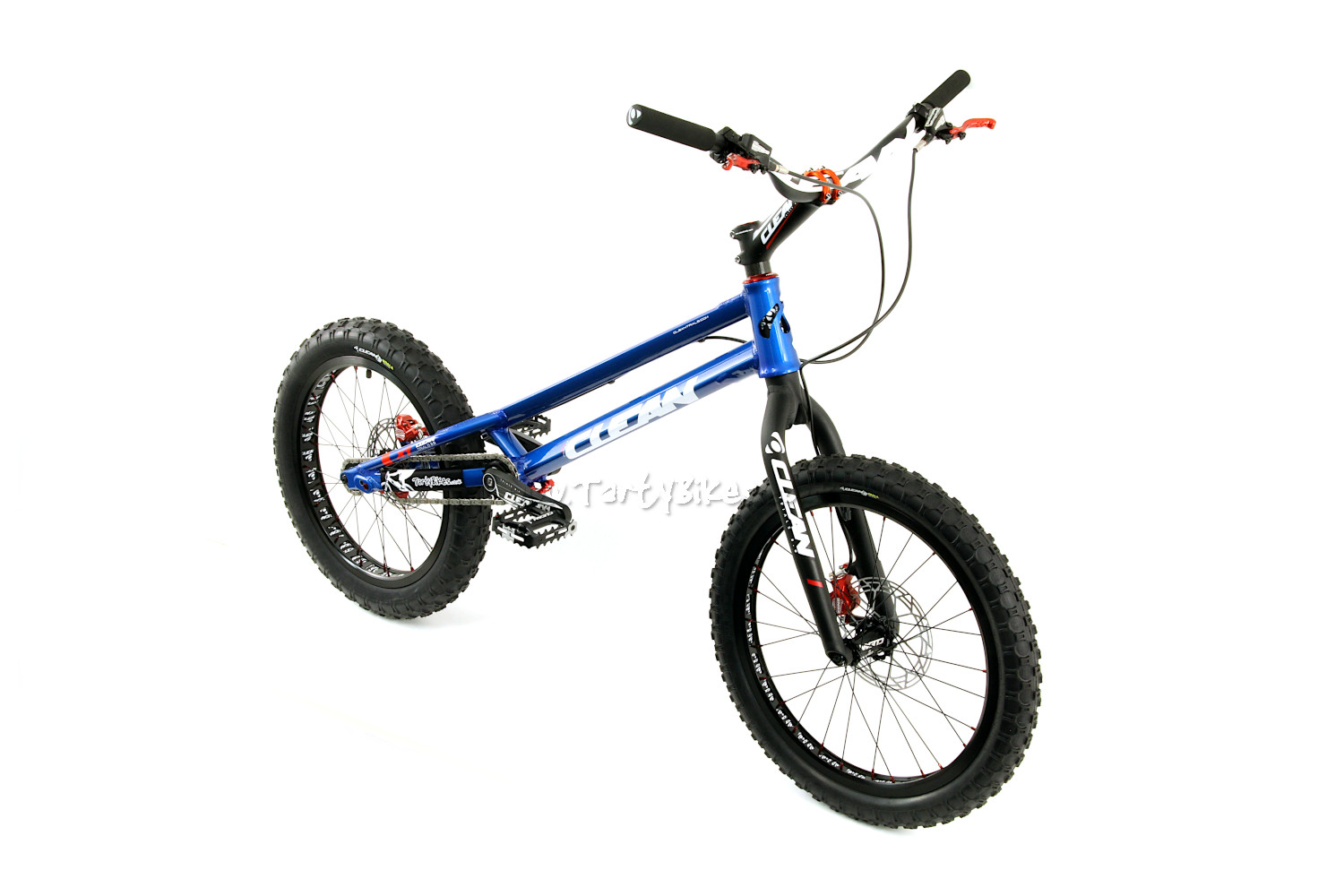

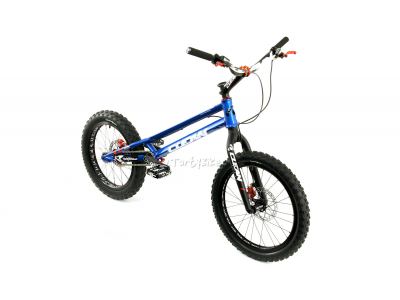

- A top quality complete bike based upon the latest generation Clean X1 frame. Based on the previous version of this frame, the newer 6061-T6 version has a few tweaks to keep it up to date.
Frame and Forks
- Frame: Clean X1 20" 2020, Disc Only - Post Mount
- Forks: Clean X2 Alloy 20", Disc Only - Post Mount
Wheels
- Front Hub: Clean Expert, Sealed, 28h
- Rear Hub: Clean Expert 116, Sealed, 32h
- Front Rim: Clean, 28h
- Rear Rim: Clean, 32h
- Spokes: Plain Gauge Steel
- Nipples: Alloy, Red
- Rim Tapes: Clean branded rim tape
- Inner Tubes: Maxxis (may be branded as Cheng Shin - this is the same company as Maxxis)
- Front Tyre: Clean Koala, 20"
- Rear Tyre: Clean Koala, 19"
Brakes
- Front Brake: Hope Tech 3 Trial Zone
- Rear Brake: Hope Tech 3 Trial Zone
- Front Rotor: Clean RS Front, 160mm
- Rear Rotor: Clean RS Rear, 162.5mm
Drivetrain

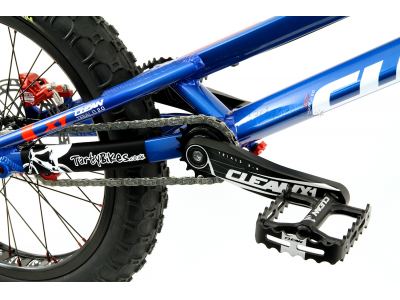

- Cranks: Clean ISIS Crankset, 160mm
- Freewheel: Clean Screw-On, 18T, 108 click
- Chain: KMC Z610 HX
- Chain Tensioner: Clean Sprung Tensioner MK2
- Rear Sprocket: 1010: Clean Screw-On 12t / 970: Clean Screw-On 14t
- Pedals: Clean Caged
- Bottom Bracket: Clean 128mm ISIS
- Bashplate: Clean Light 2-Piece 4-Bolt -
please note: due to the spacing of the bashplates,
only the Clean 2-piece bashplate can be used.
Steering
- Handlebar: Clean High-Rise
- Stem: 1010: Clean Forged, 150mm x 25° / 970: Clean Forged, 135mm x 25°

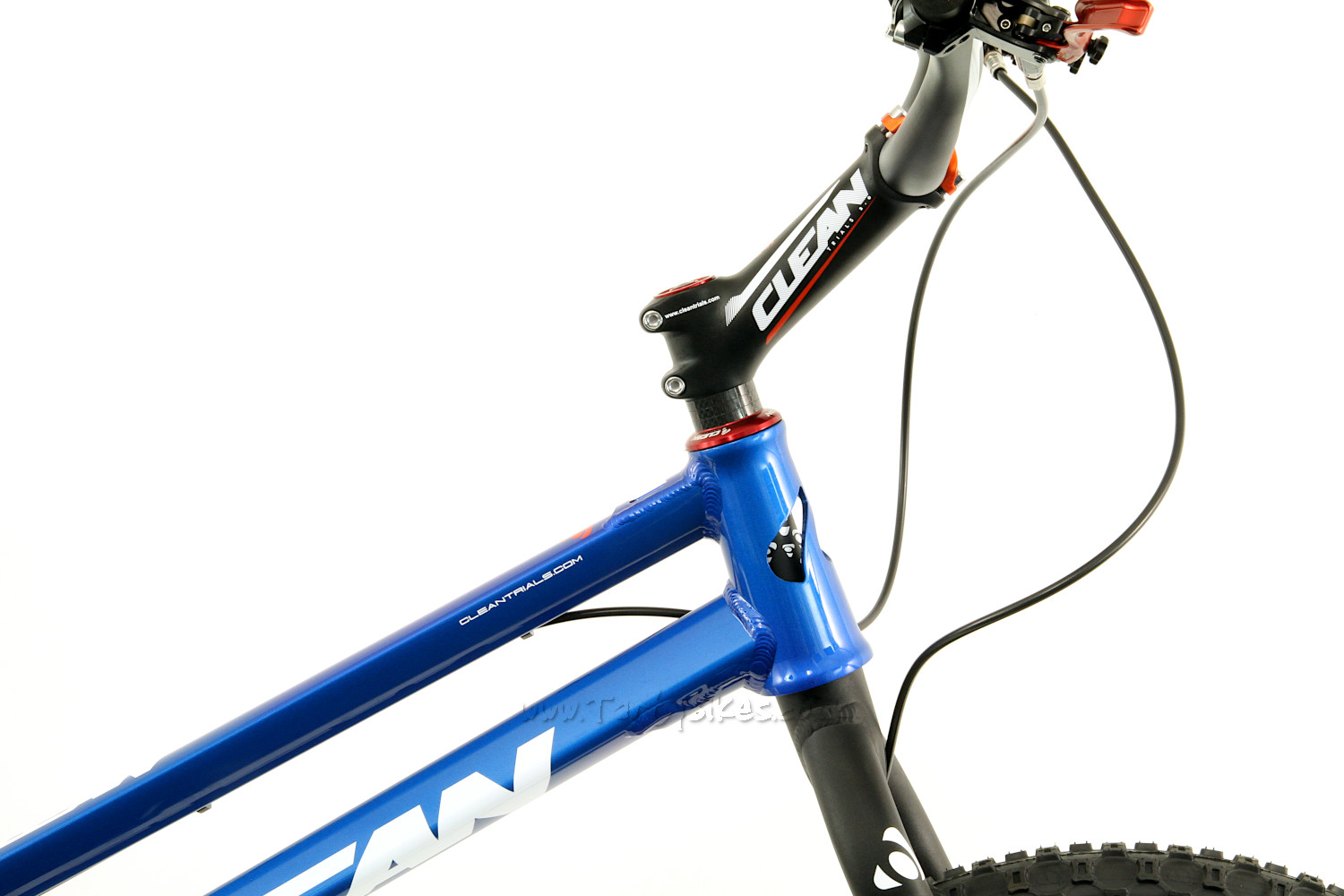

- Headset: Clean Tapered Internal
- Headset Spacers: Carbon
- Grips: Clean Foam
- Weight: 970: 8.420kg / 1010: TBC
Geometry - 970mm model, measured by TartyBikes:
- Wheelbase: 970mm
- Chainstay length: 350mm
- BB Rise: 87mm
- Head angle: 72°
- Centre of BB shell to centre top of head tube: 580
Geometry - 1010mm model, measured by TartyBikes:
- Wheelbase: 1005mm
- Chainstay length: 350mm
- BB Rise: 87mm
- Head angle: 72°
- Centre of BB shell to centre top of head tube: 580
This bike is supplied with a 6 month warranty covering manufacturing and materials defects. The warranty does not cover mistreatment or poor maintenance. Please ensure all the details on the warranty sheet supplied with the bike are adhered to. Certain circumstances (such as stripped threads or rounded crank arm tapers) only occur due to a lack of correct maintenance and all manufacturers are aware of these situations, so any claims due to incorrect maintenance procedures are much less likely to be successful.
We build this bike to a 100% complete state in our workshop before dispatch to ensure all items are manufactured correctly and nothing is missing, but we do have to remove some parts to ensure there is no damage during transit. You will need some basic tools (usually 4mm, 5mm, 6mm and 8mm allen keys and a 15mm spanner) for final assembly upon arrival. We have a video guide here to help, but please don't hesitate to contact us if you require any further assistance.
