This bike is built in our workshop before dispatch, and we often have a queue. The current lead time can be seen by adding this bike to your basket. Some basic assembly is required on arrival, we are happy to help if you need.
New from Clean, the X3 20" bridging the gap between the X1 alloy and K1 carbon range, the X3 is an alloy bike designed for top level competition riding!
We can special order the 26" Clean X3 too! If you would like to enquire about this bike, please get in touch.
- Suggested rider height: 5ft / 1.50m and up.
- High performance alloy bike from Clean for top level competition!
- New frame features integrated BB30 bottom bracket, integrated tapered headset and redesigned rear end.
- High quality parts kit including tapered carbon forks, carbon bars, sprung tensioner and more.
- New for 2023 the Clean X3 20" based on the competition proven X2 20" with innovative new design features developed with feedback from Clean team riders!
- New frame design made from 6061 T6 + 7075 T6 alloy features a completely revised rear end.
- One piece BB yoke moves high stress weld areas further down the chain stays for maximum strength and utilises a press fit, fully integrated BB30 bottom bracket, allowing for a wider BB shell for extra stiffness.

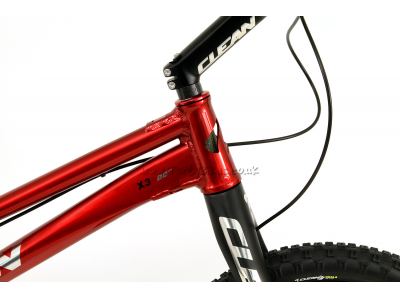

- Fully integrated sealed bearing headset saves weight and gives the front end a much cleaner look.

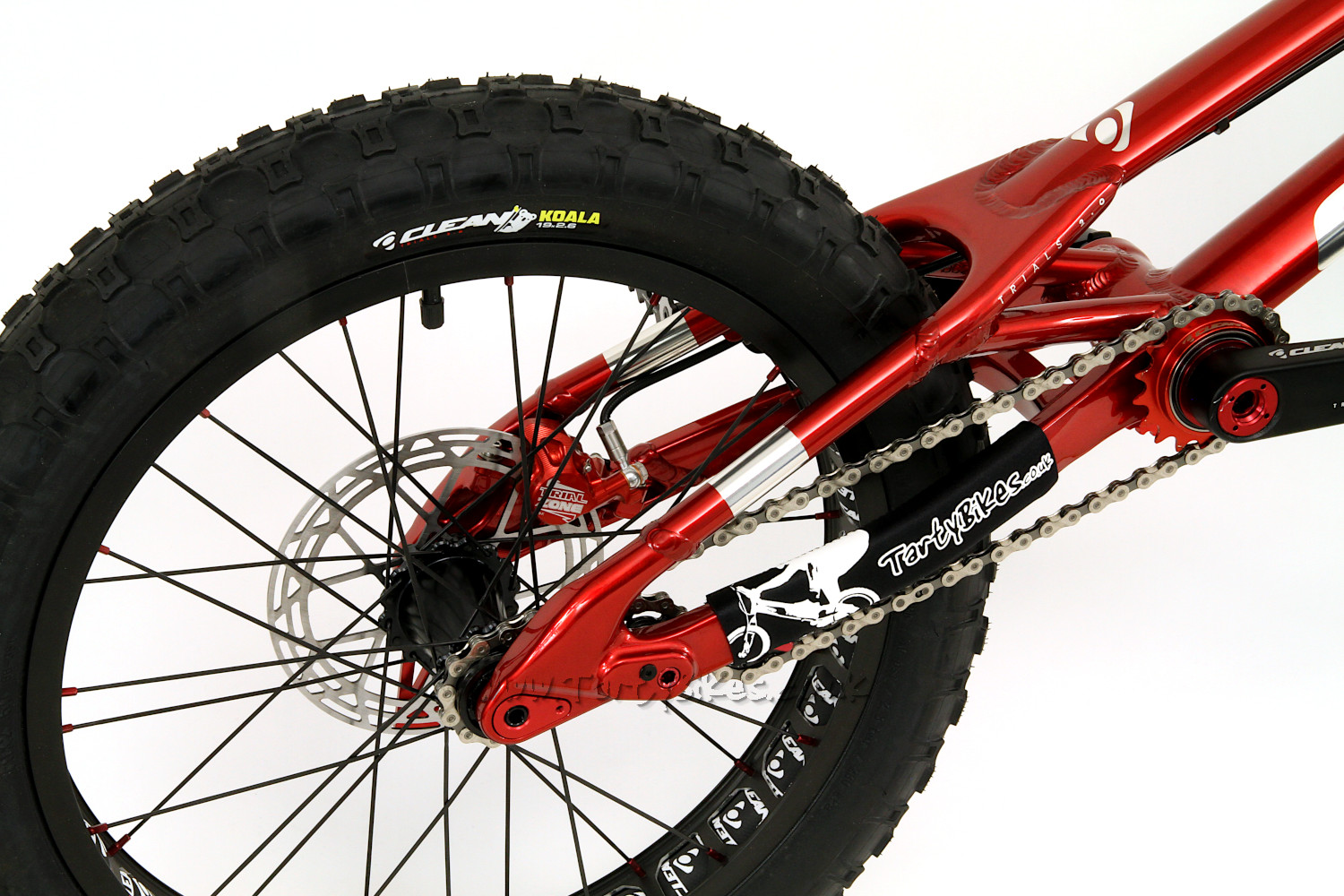

- One piece rear dropouts neatly tuck away the rear brake caliper and roller tensioner, protecting them from damage and move welds away from high stress areas.
- The bridge between the top tube and seat stays is now also a one piece design. This increases strength in this key area.
- Through axles front and back, measuring 12mm x 120mm at the rear and 12mm x 104mm at the front, improving stiffness.
- Clean carbon fork as found on their K1.2 world cup bikes has a tapered carbon steerer for reduced weight and increased stiffness.
- New Clean PRO stem with 'under bolt' clamp and Clean Carbon 103mm riser bars fitted as standard.
Frame and Forks
- Frame: Clean X3 20", Disc Only - Post Mount
- Forks: Clean Carbon Tapered 20", Disc (Post Mount) / HS
Wheels
-
Disc / Disc
- Front Hub: Clean X3 Disc, 104mm, Sealed, Through axle, 28h
- Rear Hub: Clean X3 Disc, 120mm, Sealed, Through axle, 32h. Clean disc protector included
- Front Rim: Clean PRO, 28h
- Rear Rim: Clean PRO, 32h
- Spokes: Bladed, steel
- Nipples: Alloy, Red
- Rim Tapes: Clean branded rim tape
- Inner Tubes: Clean Light
- Front Tyre: Clean Koala, 20"
- Rear Tyre: Clean Koala, 19"
-
Disc / HS
- Front Hub: Clean HS, 104mm, Sealed, Through axle, 28h
- Rear Hub: Clean X3 Disc, 120mm, Sealed, Through axle, 32h. Clean disc protector included
- Front Rim: Clean PRO, 28h
- Rear Rim: Clean PRO, 32h
- Spokes: Bladed, steel
- Nipples: Alloy, Red
- Rim Tapes: Clean branded rim tape
- Inner Tubes: Clean Light
- Front Tyre: Clean Koala, 20"
- Rear Tyre: Clean Koala, 19"
Brakes
Disc / Disc
- Front Brake: Hope Tech 3 Trial Zone
- Rear Brake: Hope Tech 3 Trial Zone
- Front Rotor: Clean RS Front, 160mm
- Rear Rotor: Clean RS Rear, 162.5mm
Disc / HS
- Front Brake: Clean HS Lever, Magura HS33 Slaves with Clean HS33 pads / Clean washerless clamps
- Rear Brake: Hope Tech 3 Trial Zone
- Front Rotor: N/A
- Rear Rotor: Clean RS Rear, 162.5mm
Drivetrain
- Cranks: Clean 3P, BB30 Crank set, 160mm with alloy preload adjust collar
- Freewheel: Clean Splined, 18T, 135.9 click
- Chain: KMC X9
- Chain Tensioner: Clean X2 sprung tensioner with alloy jockey wheels
- Rear Sprocket: Clean Splined, 12T
- Pedals: Clean Caged
- Bottom Bracket: Clean BB30
- Bashplate: Clean Light 2-Piece 4-Bolt -
please note: due to the spacing of the bashplates,
only the Clean 2-piece bashplate can be used.
Steering
- Handlebar: Clean Carbon Silver Edition, 103mm rise
- Stem: Clean PRO 'under bolt' 145 x 24º
- Headset: Clean Tapered Integrated
- Headset Spacers: Carbon
- Grips: Clean Foam
-
Weight
- Disc / Disc: 8.28kg
- Disc / HS: 8.18kg
Geometry - measured by TartyBikes:
- Wheelbase: 1015mm
- Chainstay length: 350mm
- BB Rise: 87mm
- Head angle: 70.5°
- Centre of BB shell to centre top of head tube: 610
Please note, Reach and Stack is measured using new tooling, so may differ slightly to measurements taken on older bikes.
Reach: 480mm
Stack: 375mm
