This bike is built in our workshop before dispatch, and we often have a queue. The current lead time can be seen by adding this bike to your basket. Some basic assembly is required on arrival, we are happy to help if you need.

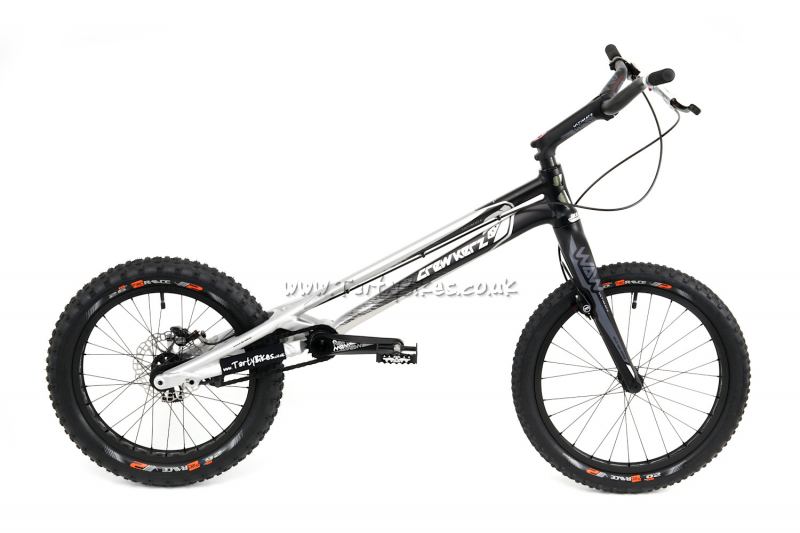

The new 2024 Crewkerz Jealousy, featuring upgraded Crewkerz carbon tensioner!
- Updated Crewkerz Jealousy frame!
- Latest generation Crewkerz Carbon forks and bars.
- Through axles front and rear.
- Suggested rider height: 5ft / 1.50m and up.
-The top level 20" bike from Crewkerz as ridden by team riders Oliver and Eddie Weightman!
- New for 2024, increased tube thickness in key strength areas improves frame strength and stiffness compared with older models.
- New Crewkerz carbon chain tensioner tucks further up towards the drive side chain stay offering better clearance, weighing just 30g!
- Latest generation WAW carbon fibre forks with a tapered carbon steerer for minimum weight and maximum stiffness.
- High rise carbon fibre riser bars compliment the geometry of the frame well.
- Bolt through axles front and rear for ultimate stiffness and definitive wheel positioning.
- AS30 splined crank set with incredibly stiff bottom bracket area.
- Disc side dropout and post mount disc mount are CNC machined from a single piece of aluminium for added stiffness.
- Fully integrated 1.5" to 1 1/8" tapered head tube on the new 2024 frames looks neater, and saves weight!
- Available with Hope Tech 4 Trial Zone brakes front and rear, or a Hope Tech 4 Trial Zone disc brake on the rear with a Trialtech Carthy Signiture Lever/Magura HS33 rim brake up front. Rim brake version uses Crewkerz own WAW HS 4 bolt clamps and is supplied with Crewkerz HS pads.
- Rear Crewkerz CNC disc protector comes as standard on the rear of both HS and Disc bikes.
- 135 click freewheel with super strong springs, sealed bearings and a splined interface.
- Now fitted with a 2-piece bash plate for added protection!
- Hashtagg rims front and rear are a really nice touch as one of the best after market rims available for comp riding.
- Monty Pro Race V2 tyres are fitted for 2022. This incredibly popular tyre has awesome grip and excellent stability, especially on rough and loose terrain.
- WAW sealed bearing caged pedals, saving a large amount of weight.
Frame and Fork
- Frame: Crewkerz Jealousy, post mount disc mount with 12mm bolt through axle, 135mm spacing
- Fork: Crewkerz Carbon, Disc Only or 4-Bolt Only with 9mm bolt through axle, tapered steerer tube and integrated crown race
Wheels
- Front hub: Crewkerz WAW sealed bearing, 9mm bolt through axle
- Rear hub: Crewkerz Disc WAW sealed bearing, 12mm bolt through axle, splined sprocket interface
- Chain tensioner: Crewkerz WAW (Wild And Wired)
- Front rim: Hashtagg, 28h, single wall, 32mm wide
- Rear rim: Hashtagg, 32h, single wall, 47mm wide
- Spokes: Sapim double butted, black
- Nipples: Aluminium, anodised black.
- Rim tape: Crewkerz
- Inner tube (front): Maxxis
- Inner tube (rear): Maxxis
- Front tyre: Monty Pro Race V2, 20" x 2.0"
- Rear tyre:Monty Pro Race V2, 19" x 2.6"
Brakes
-
Front Rim Brake option:
- Front brake: Trialtech Carthy Signature Lever with Magura HS33 Slave Cylinders
- Front brake clamps: Crewkerz WAW - these use cylindrical washers. Standard plastic Magura cylindrical washers are supplied, if you wish to upgrade to alloy ones, we sell the Trialtech cylinder washers
here. If you would like these fitted during the build, add some to your order, and let us know in the order notes!
- Front brake pads: Magura, Red
-
Dual Disc option:
- Front brake: Hope Tech 4 Trial Zone
- Rear brake: Hope Tech 4 Trial Zone
- Rotor: Hope Trial Zone V2, 160mm
Drivetrain
- Cranks: Crewkerz WAW, 165mm, with integrated axle and splined freewheel system
- Freewheel: Crewkerz WAW Sealed, 18t, 135 engagements
- Chain: KMC Z610HX, Black
- Rear Sprocket: Crewkerz Splined, 12t
- Pedals: Crewkerz WAW Single Cage
- Bottom bracket: AS30 with aluminium axle
- Bashplate: Crewkerz WAW 2-Piece
Steering
- Headset: Internal style, sealed bearing, 1 1/8" top and 1.5" bottom
- Stem: Crewkerz WAW, Ultimate, 155mm x 20°
- Grips: Crewkerz Foam
- Handlebars: Crewkerz WAW Ultimate Carbon Risers - 108 rise / 720mm wide.
Geometry
- Wheelbase: 1015mm
- Chainstay: 350mm
- BB Height: +95mm
- Head Angle: 71°
- Centre of BB shell to centre top of head tube: 610mm
Reach: 463mm
Stack: 378mm
- Weight - Rear Disc/Front Rim Brake: 7.88kg - Dual Disc: 7.94kg
This bike is supplied with a 6 month warranty covering manufacturing and materials defects. The warranty does not cover mistreatment or poor maintenance. Please ensure all the details on the warranty sheet supplied with the bike are adhered to. Certain circumstances (such as stripped threads or rounded crank arm tapers) only occur due to a lack of correct maintenance and all manufacturers are aware of these situations, so any claims due to incorrect maintenance procedures are much less likely to be successful.
We build this bike to a 100% complete state in our workshop before dispatch to ensure all items are manufactured correctly and nothing is missing, but we do have to remove some parts to ensure there is no damage during transit. You will need some basic tools (usually 4mm, 5mm, 6mm and 8mm allen keys and a 15mm spanner) for final assembly upon arrival. We have a video guide here to help, but please don't hesitate to contact us if you require any further assistance.
