Extention Rise 20

Product code: 14189

This bike is built in our workshop before dispatch, and we often have a queue. The current lead time can be seen by adding this bike to your basket. Some basic assembly is required on arrival, we are happy to help if you need.

The new complete trials bike from Extention!

Please note: There have been some minor spec changes on this batch of bikes:

- Stem is now an Extention branded, sloped model in 150mm with a 28° rise. A sloped top cap is not provided.
- Rear sprocket is now anodised red colour.
- Grips are now a 'wavy ribbed' pattern with a collar, and approximately 150mm in length.
- Wheels are now built with black nipples, and black rim tape.

All these changes are aesthetic only, or upgrades from the previous specification. We will update the listing pictures as soon as possible!

Great value 20" bike from Extention!
Top quality spec list including sealed bearing caged pedals, 2 piece alloy crank, 108 engagement freewheel, tapered fork and hydraulic brakes!
Suggested rider height: 5ft / 1.50m and up.

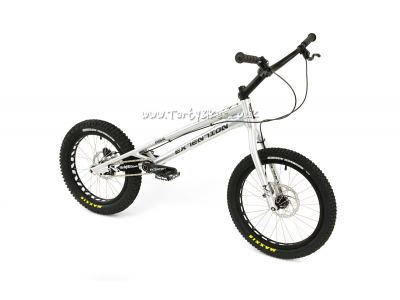

- New from Extention, the Rise 20" complete bike!
- Designed to compete with some of the most popular competition 20" bikes, the Rise 20 features modern geometry, a great spec list and high quality finish.
- Hydra formed aluminium frame uses a tapered head tube for increased front end stiffness.
- Unique closed drop-outs for M6 hubs reduce stress risers in this area, providing greater stiffness to counteract disc brake forces.
- 160mm post mounts as standard make brake alignment and adjustment easy!

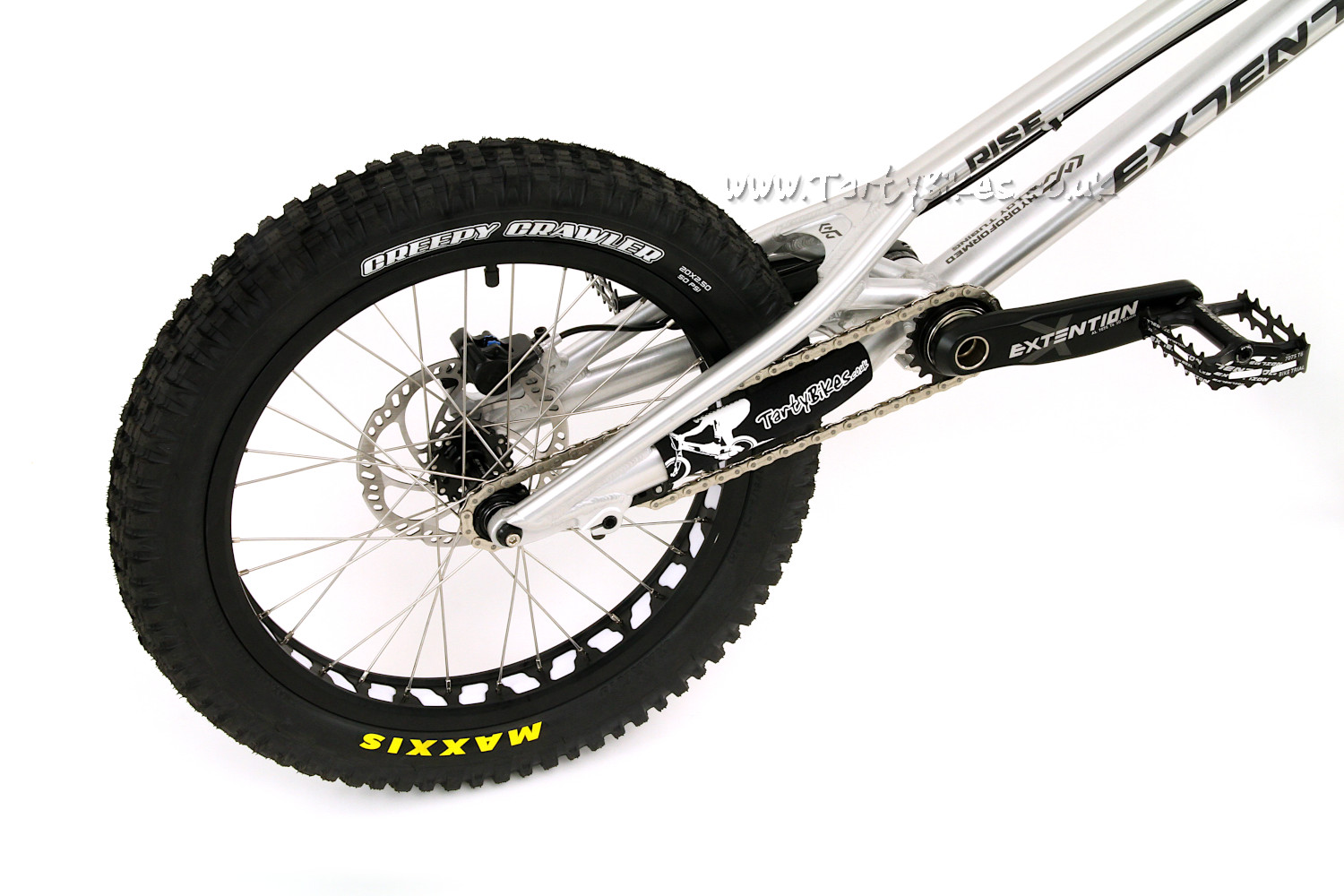

- Neat roller tensioner provides excellent chain wrap and tucks away under the drive side chain stay to prevent accidental damage.
- Extention 7075 alloy, external BB cranks use a 24mm steel spindle and 2 piece design, much like Hollowtech Shimano cranks. This results in a super stiff pedal interface!
- Extention sealed bearing hubs laced onto Extention comp rims make for a reliable and competitively light wheel set.
- The Rise 20 is supplied with a sloped stem and Carbon sloping top cap wedge. You can run the stem as it is or we can cut the steerer at an angle when you purchase the 'alloy fork with sloping stem' cutting service here.

Frame and Forks
- Frame: Extention Rise 20", 1005mm Wheelbase
- Forks: Extention Alloy 20"

Wheels
- Front hub: Extention Disc, sealed M6
- Rear hub: Extention Disc, Sealed M6, Splined, 116mm
- Front rim: Extention Comp, 28h
- Rear rim: Extention Comp, 32h
- Spokes: Plain Gauge
- Nipples: Brass, Black
- Rim tape: Extention, black.
- Inner tube (front): Butyl Rubber
- Inner tube (rear): Butyl Rubber
- Front tyre: Maxxis Creepy Crawler, 20 x 2.0"
- Rear tyre: Maxxis Creepy Crawler, 19 x 2.6"

Brakes
- Front brake: Magura MT Sport, 160mm Magura Storm Rotor
- Rear brake: Magura MT Sport, 160mm Magura Storm Rotor

Drivetrain
- Cranks: Extention 2 piece, external BB, 165mm
- Freewheel: Extention, 108, 18t screw on
- Chain: KMC Z1eHX 3/32"
- Rear Sprocket: Extention alloy, splined, anodised red, 12t
- Chain tensioner: Extention sprung roller tensioner, alloy jockey wheels
- Pedals: Extention caged, sealed bearing
- Bottom bracket: Extention 24mm, external
- Bashplate: Extention

Steering
- Headset: Extention sealed, tapered integrated: Lower bearing: OD - 52mm / ID - 40mm / Width - 7mm, race angle 45° / 45° - Upper bearing: OD - 41.8mm / ID - 30mm / Width - 7mm, race angles 45° / 45°
- Stem: Extention sloped forged, 150mm - Now features Extention graphics.
- Headset Spacers: Extention, alloy sloped.
- Grips: Rubber, Black
- Handlebars: Extention 6061 Alloy high Riser, 730mm Width x 125mm Rise (measured by us) - Now features Extention graphics.

Geometry:
Wheelbase: 1005mm
Chainstay Length: 350mm
BB Rise: +80mm
Headtube Angle: 72.5°
Centre of BB shell to centre top of head tube: 615mm

Weight - Disc: Approx 8.94kg

This bike is supplied with a 6 month warranty covering manufacturing and materials defects. The warranty does not cover mistreatment or poor maintenance. Please ensure all the details on the warranty sheet supplied with the bike are adhered to. Certain circumstances (such as stripped threads or rounded crank arm tapers) only occur due to a lack of correct maintenance and all manufacturers are aware of these situations, so any claims due to incorrect maintenance procedures are much less likely to be successful.

We build this bike to a 100% complete state in our workshop before dispatch to ensure all items are manufactured correctly and nothing is missing, but we do have to remove some parts to ensure there is no damage during transit. You will need some basic tools (usually 4mm, 5mm, 6mm and 8mm allen keys and a 15mm spanner) for final assembly upon arrival. We have a video guide here to help, but please don't hesitate to contact us if you require any further assistance.
