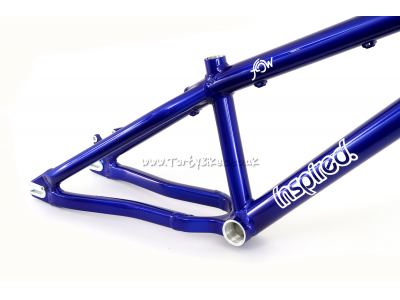

Inspired Flow XP Frame Kit with Tensioners and Headset

Product code: 14159

Great value, top quality frame kit from Inspired!
As used in the popular Flow XP 24" bike.
Including frame, fork, headset, cable clips and chain tensioners.

- As used in the popular Inspired Flow XP bikes, the Inspired Flow XP frame kit!
- Supplied as a Flow XP frame, with Trialtech Internal Headset, Inspired Flow Chain Tugs, cable clips and Inspired Flow XP Alloy forks with the new threaded steerer for internal front brake routing.
- Tough alloy frame borrows design cues from the Fourplay to ensure a great strength to weight ratio.
- Gussets at the top and down tube head tube junctions reinforce this high stress area.
- 130mm long 1 1/8" steerer head tube requires the use of an internal headset (Trialtech Internal headset supplied with kit).
- One-piece BB yoke gives great tyre clearance (maximum tyre width: 2.4") while providing plenty of stiffness.
- +20mm positioned IS Disc Mount is integrated into the dropout to boost strength.
- The frame disc mount is also elongated and gusseted to handle the stresses and strains from trials usage.
- CNC-machined 135mm spaced horizontal dropouts are nice and simple, with chain tension handled by the Inspired Flow Chain Tugs (supplied with the kit).
- Seat tube is compatible with 27.2mm seat posts, and 31.8mm seat post clamps which are sold separately here.
- Flow XP Alloy forks are a proven, dependable fork, featuring technology found on the Fourplay forks. The Flow XP alloy fork now features a threaded steerer tube and drilled top cap for internal front brake routing, no more star nuts!
- Ultra thick CNC machined aluminium steerer tube (6mm wall thickness) is pressed and welded into the fork crown, removing the stress riser associated with the crown race seat area.
- Custom designed and manufactured disc brake mount (at the International Standard position) is extra long to prevent cracking at the top where it joins the leg.
- Super thick, large diameter fork legs provide additional strength.
- Total kit weight: 3.4kg

Geometry:
- Wheelbase: 1010mm
- Chainstay: 375mm
- BB Rise: +15mm
- Head Angle: 73˚
- Centre of BB shell to centre top of head tube: 670mm

Compatibility
- Headset type: Internal
- Bottom bracket type: Screw-in, 73mm shell width
- Dropout spacing: 135mm
- Brake mount type: +20mm IS Disc Mount
- Bashguard type: n/a - requires a bashring
