- Top quality frame kit from inspired!
- Includes frame, forks, headset & chain tensioner.
Inspired Fourplay Team Frame Kit
- For a limited time only, the new 2022 Inspired Fourplay is available as a Team frame kit!
- Tested extensively by Inspired team riders.
- Team frame kit includes a tapered head tube and 20mm Team front through axle and 12mm rear Team axle!
-

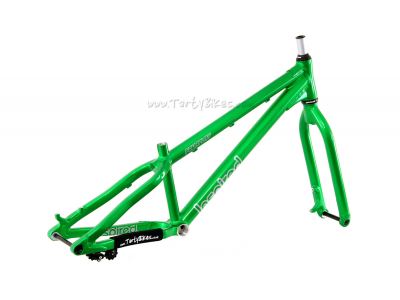

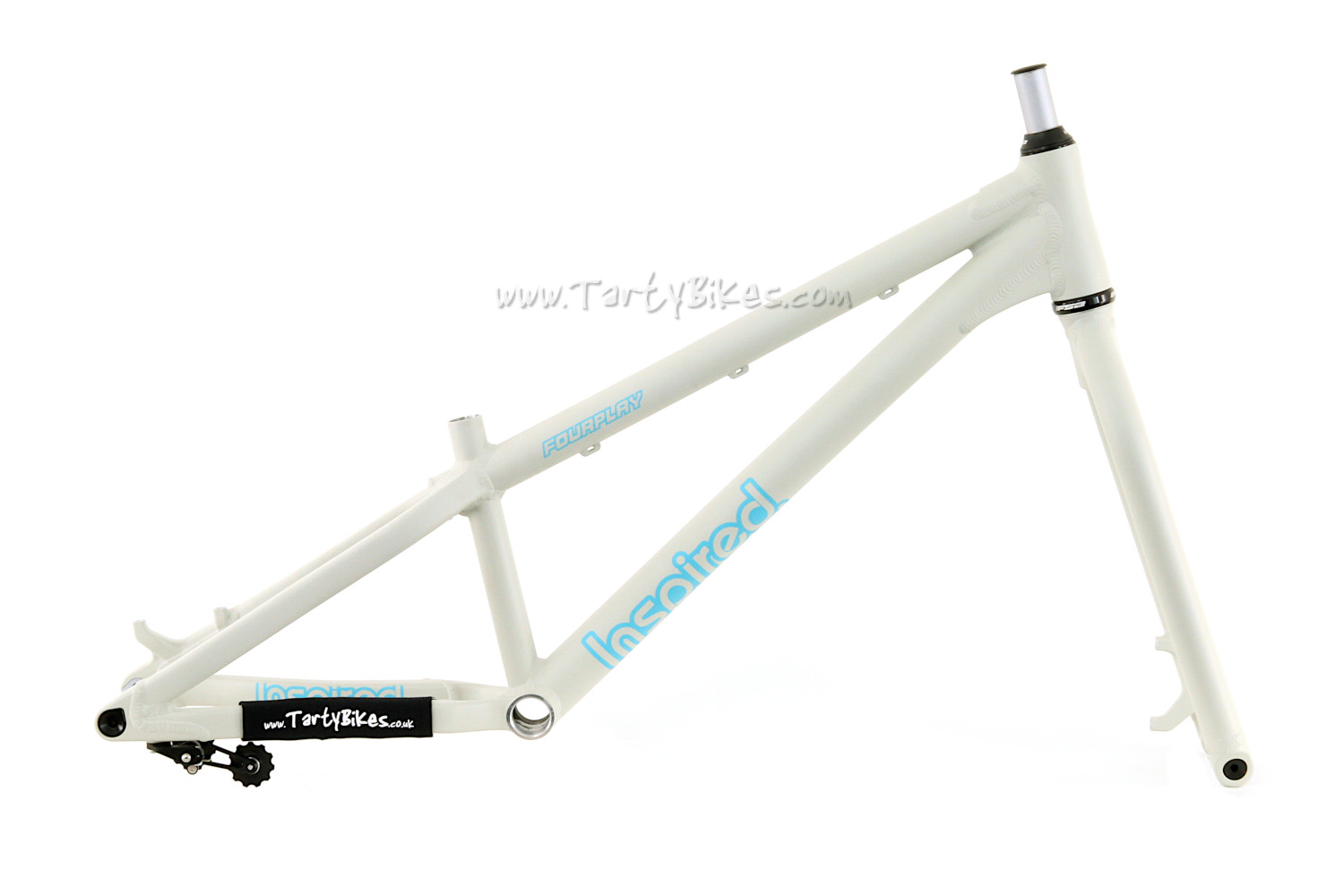

Frame kit is pictured with the Pro fork, but will come supplied with the Team fork and team axles. The main frame and all other components are the same as pictured.
- High quality 6066 aluminium tube set includes double butted top and down tubes.
- Completely re-designed dropout is forged from high grade aluminium.
- Now featuring 12mm Team rear through axle, as well as 180mm position Post Mount disc mount.
- New head tube design now uses an Internal headset, with a 1.5" lower cup allowing the use of a tapered steerer tube fork.
- Revised top tube and seat stay joints for improved strength.
- Two-piece hollow forged BB yoke is super strong yet also saves weight.
- Euro style (threaded) 73mm bottom bracket features a 1.37" x 24tpi thread suitable for use with any 73mm shell compatible threaded bottom bracket we stock.
- Chain tensioner and mounting point design allows the rear wheel to be removed without having to loosen the tensioner first. The tensioner also only has a cage on one side, meaning the chain can be put on and taken off without having to split and rejoin it!
Inspired Team Fork
- Team fork features the new top cap design which screws into the threaded steerer tube and allows the hose to be routed through the steerer if required.
- Supplied with Inspired 20mm Team axle.
- Forged triple butted steerer tube (210mm long) is made out of aircraft grade 6066 aluminium.
- Screw-in top cap replaces the traditional star nut assembly, and also allows easy steerer tube hose routing.
- Chunky fork legs add extra stiffness for hooks, and for moves on the front wheel.
- Unique CNC'd dropouts feature tapered interface for bolt through 20mm axle.
-
Frame kit only available in Green, Gloss and Satin, Grey.
Full kit includes:
Fourplay Team Frame
Inspired Team Forks
FSA Sealed Headset & Inspired Top Cap
Tensioner Mount
Single-sided Tensioner
Team 20mm and 12mm axles
TartyBikes chain stay protector!
Weights:
- Total frame kit weight (Frame, fork, rear and front axel, tensioner, headset and top cap): 3.28kg
- Tensioner and mount: 0.076kg
- Fork: 1024g
- Rear Axle: 0.065kg
Geometry:
- Wheelbase: 994mm
- Chainstay length: 362mm
- BB Height: +10mm
- Head Angle: 73°
- Centre of BB shell to centre top of head tube: 670mm
Reach: 432mm
Stack: 500mm
Compatibility
- Headset type:
Internal Top Cup, 1-1/8"
EC49/40 Lower Cup, 1-1.5"
- Bottom bracket type: Screw-in, 73mm shell width
- Dropout spacing: Frame - 135mm / Fork 110mm (not boost)
- Brake mount type: +20mm Post Disc Mount
- Bashguard type: n/a - requires a bash ring
- Chain line: 51mm (Recommended minimum with 22T chain ring)
In stock
