Please note the red coloured graphics and text on the HS fork are now white. The HS forks have a slight mark on the top of the shoulder of the fork crown. This is cosmetic only and does not affect the warranty.
- Top of the range forks from Crewkerz!
- Tested and developed by multiple World Champion Jack Carthy.
- Some of the strongest forks on the market despite their low weight!

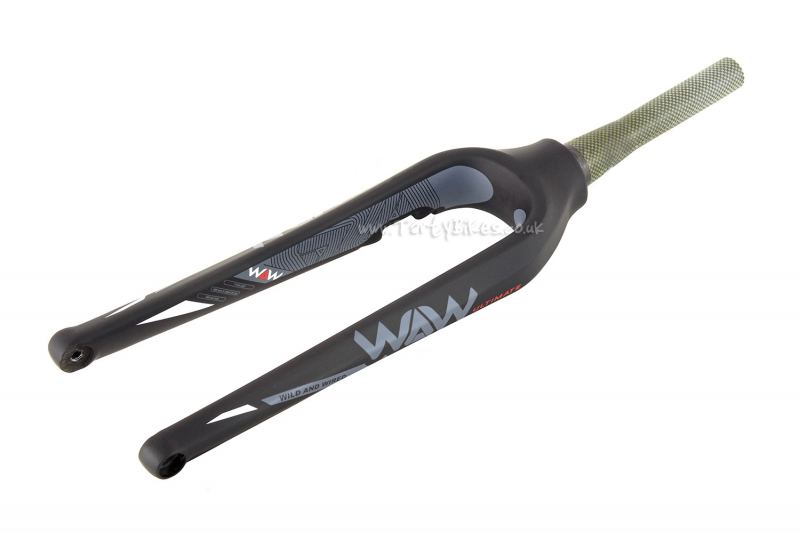

- New from Crewkerz, the updated Crewkerz Carbon 26" forks!
- A unique design makes them the most advanced trials forks to date.
- Custom fork leg profiles are designed to make the forks as stiff and strong as possible.
- Made from unidirectional carbon fibre, with alloy inserts in the steerer tube, brake mounts and dropouts.

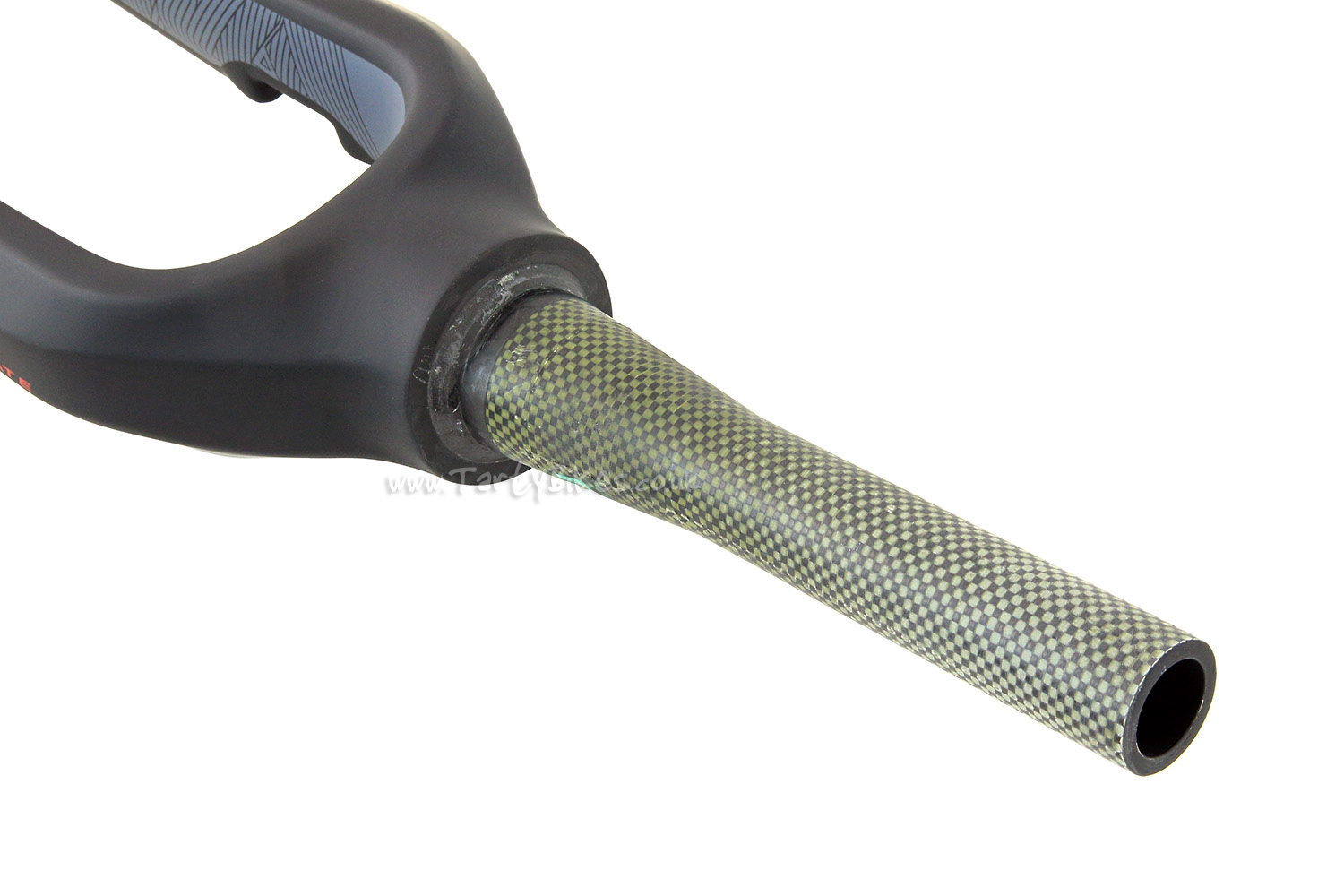

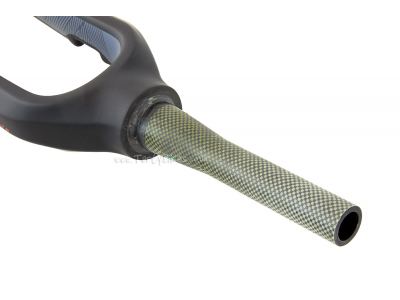

- Tapered steerer tube is wrapped in kevlar to improve strength, durability, and grip for your stem!
- The carbon steerer tube has 4mm wall thickness, and is strengthened by an aluminium insert. This insert is threaded down to a depth of 150mm (the unthreaded insert continues on below this depth) to allow you to preload your headset without having to use a star nut.
- Integrated crown race system - run your bearing directly onto the fork without a crown race (requires sealed cartridge bearing headset).

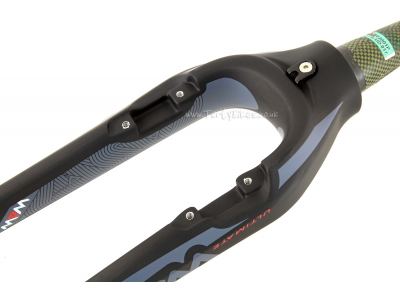

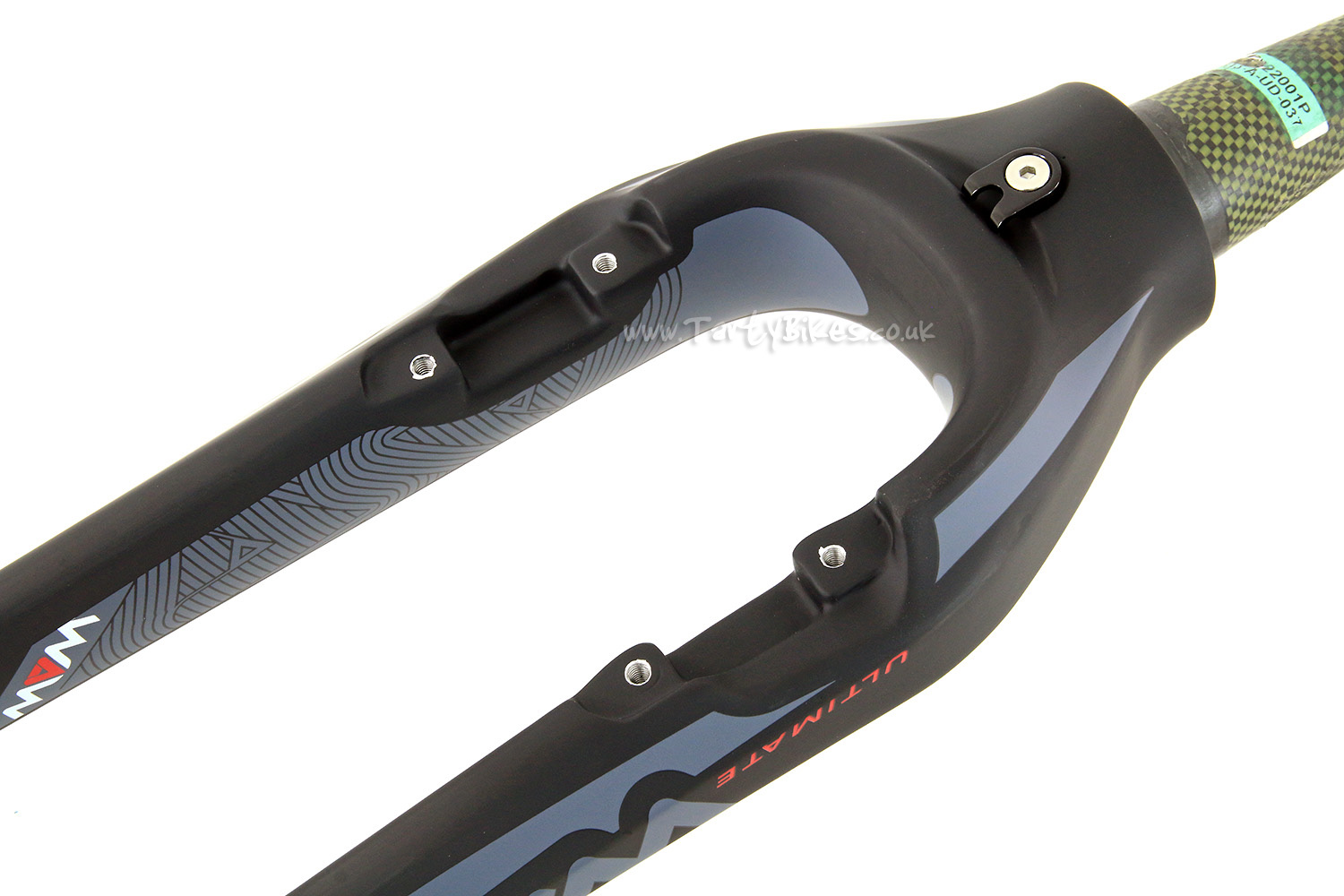

- 4-Bolt brake mounts (spaced at 92mm) are integrated into the fork leg, meaning the brake cylinders sit nearer the centre line of the fork, improving stiffness compared to other designs.
- A channel that passes around the crown of the fork above the brake mounts is complimented by a small clip, allowing you to neatly keep your crossover pipe in place.

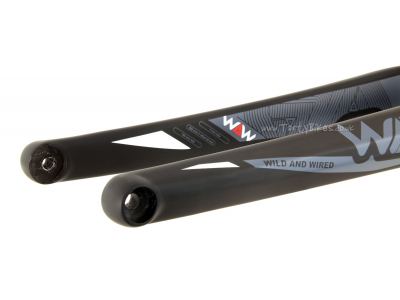

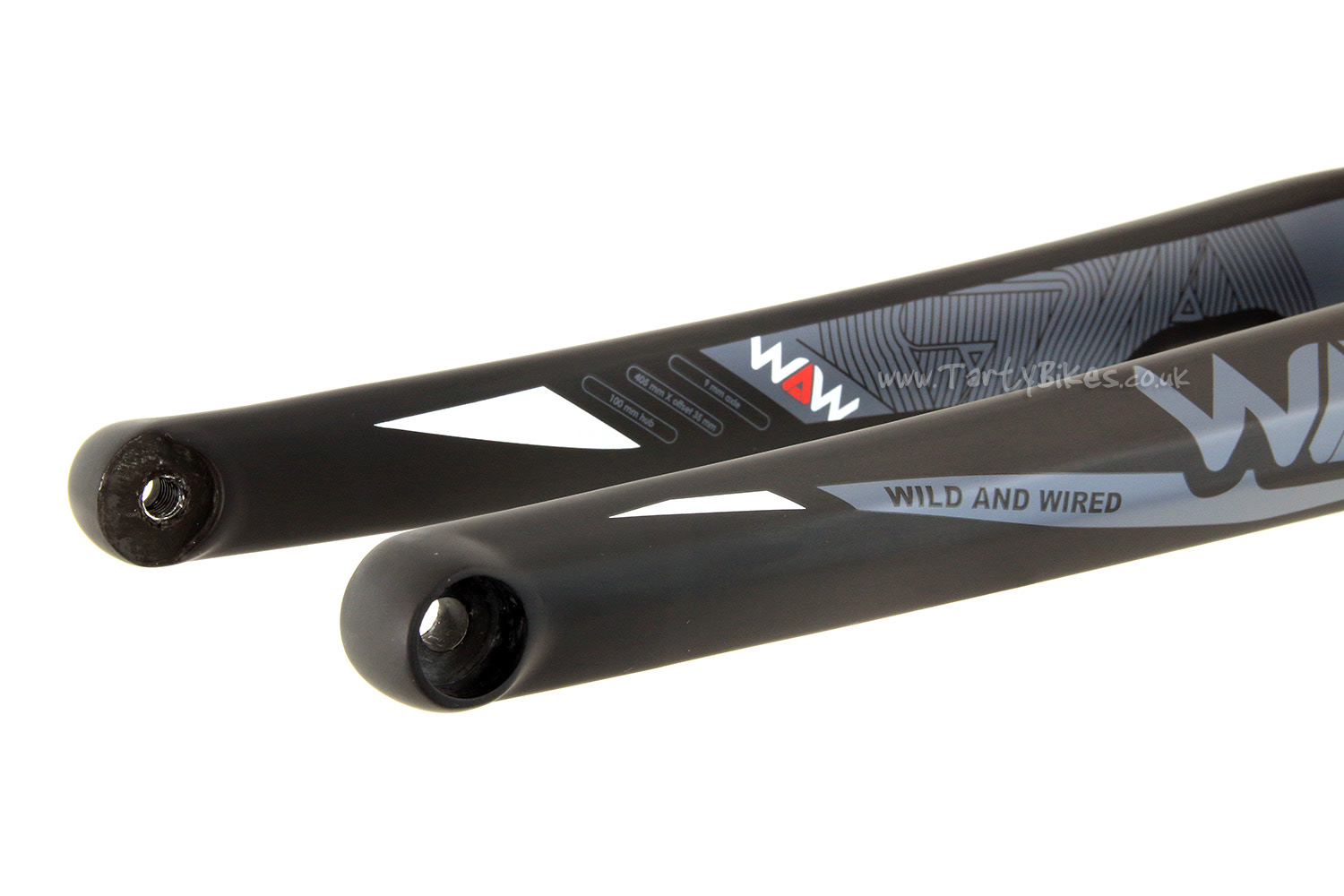

- Dropouts are only suitable for use with a 9mm through axle, as found on the Crewkerz complete bikes.

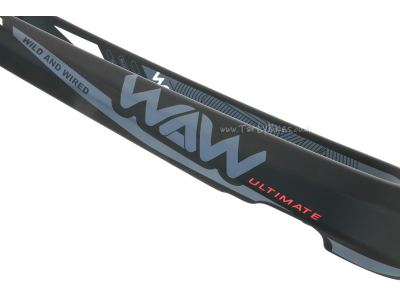

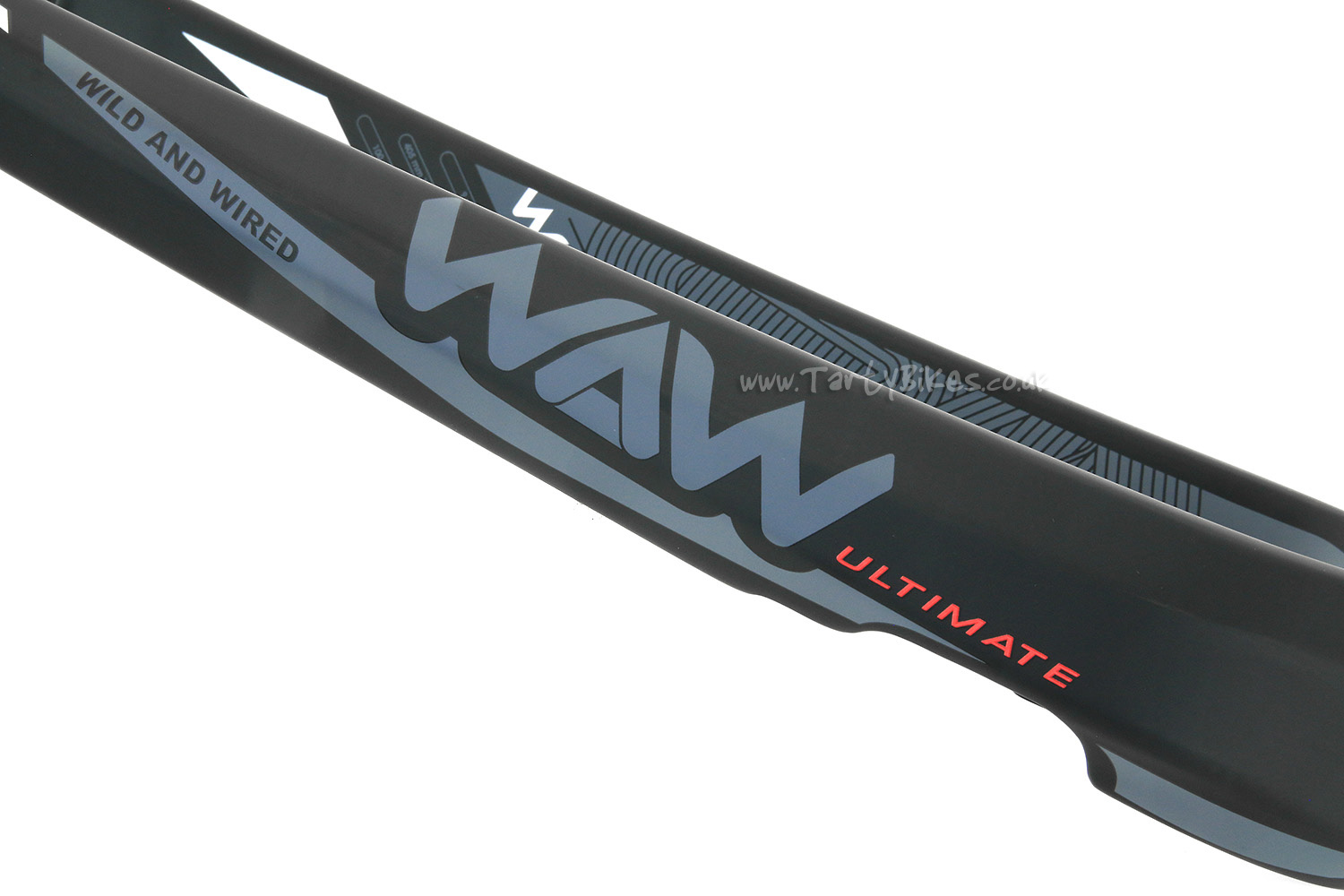

- A clear, matte finish is complimented by Crewkerz, WAW and WPP graphics.
- Weight: 540g
Fork Dimensions
- Axle to Crown length: 405mm
- Axle Offset: 35mm
- Steerer tube length: 190mm
Out of stock
Technical Info
Facebook
Need some help?
In stock
The best trials fork available
Posted by Trevor
Guys! What a product. Light. Strong. Quality. As a professional Trial bike performer, without question I choose Tarty Bikes to supply this contract for my bike needs, and one of the keys was to have the carbon disk fork. I was a bit hesitant at first as I knew I was going to be doing a lot of riding at work, a lot of front wheel hops during the contract. After one year of performing in the show (www.Ringling.com), this fork is on both of my bikes, and performing flawlessly! For example of these forks durability and reliability: I’m riding 4x per week, performing 6 shows per weekend, each show I do a front wheel hopping segment + all the warm-up beforehand at each show. I haven't had a single issue after a year of training and performing. Compared to the aluminium forks I’ve been through in the past, I don’t believe aluminium would have made it this far. Absolutely convinced in carbon trials technology, and excited for the future! Thank you Tarty for keeping the trials world stocked with top-notch gear!
Reply from TartyBikes
Thanks for the in depth review, Trevor! It's good to hear the Crewkerz WAW Disc Carbon Forks are standing up to regular use in such a demanding environment.
Ben
Carbon Crewkerz Forks
Posted by Matt
I bought these forks in May 2017, upgrading from alloy forks. I really like front wheel moves (rolling/static gaps front and front wheel hops). The carbon Crewkerz were substantially stiffer for front moves than any other fork I've had for trials in the last 9 years. They gave me a much better feeling on my Echo and they fit perfectly with the tapered head tube. I've been riding them solid since May and they are still incredible! Even after a bunch of crashes they only have minor scratches that have not effected performance. The forks look really good in clear coat with white and grey graphics, and along with the through axles hub they look super seamless. Would highly recommend to anyone who enjoys comp riding and super stiff feeling on front wheel moves :-)
Reply from TartyBikes
Hi Matthew - I'm glad you've got on well with your forks, and it's good to hear that they've improved the feel of your bike so much. Thanks for the detailed review!
