This bike is built in our workshop before dispatch, and we often have a queue. The current lead time can be seen by adding this bike to your basket. Some basic assembly is required on arrival, we are happy to help if you need.
New to Tarty Bikes, the great value Clean X1 26"!
- Great value complete bike from Clean!
- Tapered head tube, integrated sprung tensioner, high quality parts kit.
- Suggested rider height: 5ft 3in / 1.60m and up.
- A great value, competition ready 26" bike from Spanish trials giants, Clean.
- Suitable for adult beginner, and advanced riders alike.
- 6061 T6 and 7075 T6 aluminium frame features hydro formed tubing, with one piece BB, and one piece seat stay yoke to increase strength in these key areas.

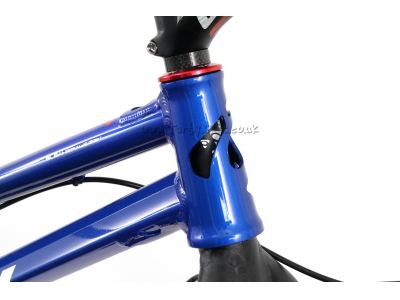

- A 7075 T6 aluminium fork improves braking stiffness, and the larger diameter, tapered steerer tube helps prevent unwanted fork flex at the head tube for greater precision.

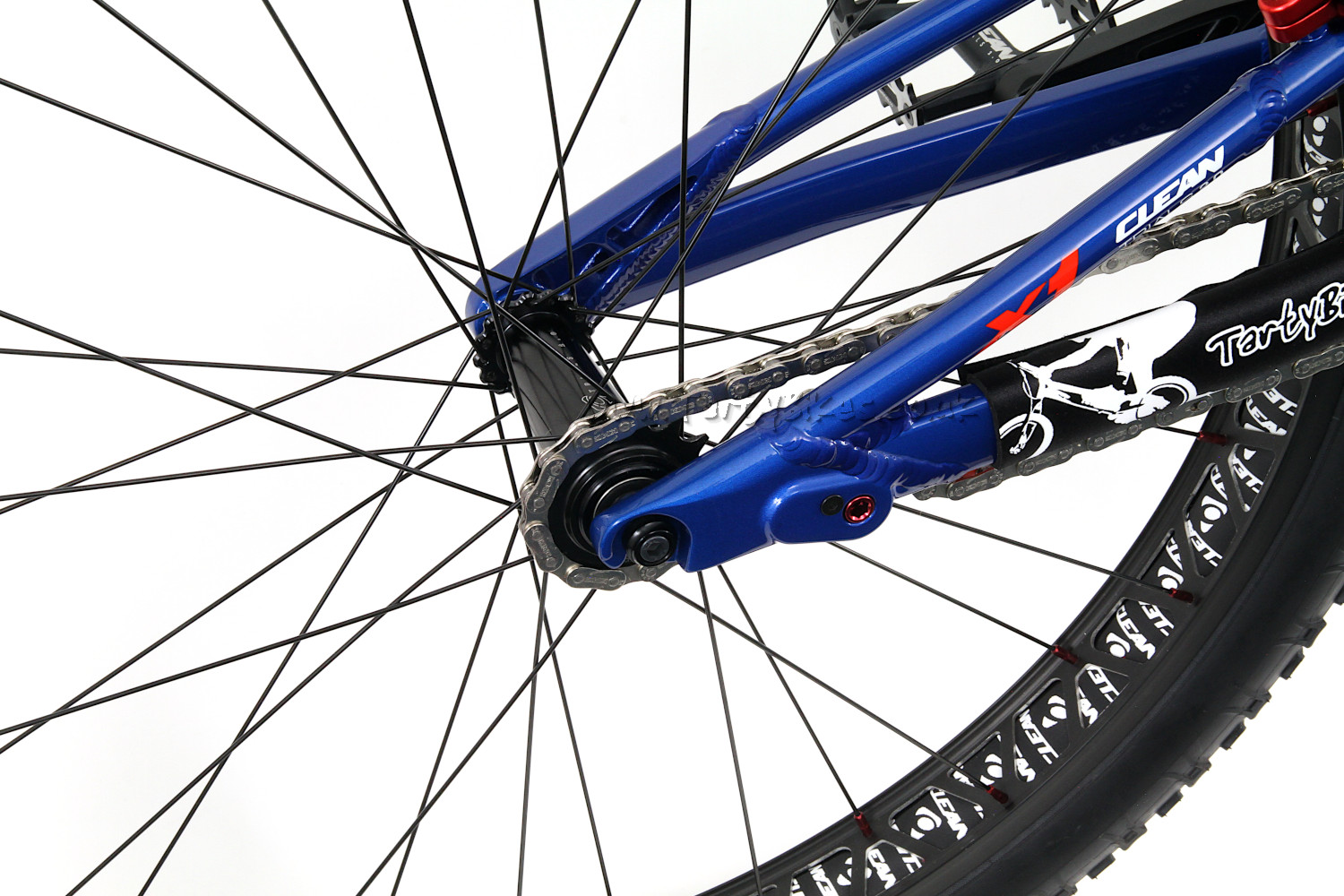

- 116mm, vertical standard OLD rear drops outs, and 100mm standard OLD front drop-outs, using the same roller tensioner as found on Clean K1 bikes.
- PRO specification includes upgraded Trialtech Sport HP levers, and Clean HS washerless brake clamps.
- Super light Clean PRO rims laced to sealed bearing, Clean X2 hubs with plain gauge spokes and alloy nipples.
- Weight: 9.28kg (Pro model)
Frame and Forks
- Frame: Clean X1 26", HS
- Forks: Clean X1 26", HS
Wheels
- Front Hub: Clean X2, Sealed, 28h
- Rear Hub: Clean X2 116, Sealed, 32h
- Front Rim: Clean Pro, 28h
- Rear Rim: Clean Pro, 32h
- Spokes: Plain Gauge Steel
- Nipples: Alloy, Red
- Rim Tapes: Clean branded rim tape
- Inner Tubes: Maxxis (may be branded as Cheng Shin - this is the same company as Maxxis)
- Front Tyre: Clean Koala, 26" x 2.0"
- Rear Tyre: Clean Koala, 26" x 2.5"
Brakes
- Front Brake: Magura HS slaves with Trialtech Sport HP lever, standard Magura HS pads
- Rear Brake: Magura HS slaves with Trialtech Sport HP lever, standard Magura HS pads
Drivetrain
- Cranks: Clean ISIS Crankset, 170mm
- Freewheel: Clean Screw-On, 18T, 108 click
- Chain: KMC Z1 eHX
- Chain Tensioner: Clean Sprung Tensioner MK2
- Rear Sprocket: Clean 15t screw on
- Pedals: Clean Caged
- Bottom Bracket: Clean 128mm ISIS
- Bashplate: Clean half bash guard
Steering
- Handlebar: Clean Aluminum High-Rise
- Stem:155mm x 25°
- Headset: Clean Tapered Internal
- Headset Spacers: Carbon
- Grips: Clean Foam
Geometry - Measured by TartyBikes:
- Wheelbase: 1083mm
- Chainstay length: 380mm
- BB Rise: +68mm
- Head angle: 72°
-- Centre of BB shell to centre top of head tube: 663
Reach: 515mm
Stack: 425mm
This bike is supplied with a 6 month warranty covering manufacturing and materials defects. The warranty does not cover mistreatment or poor maintenance. Please ensure all the details on the warranty sheet supplied with the bike are adhered to. Certain circumstances (such as stripped threads or rounded crank arm tapers) only occur due to a lack of correct maintenance and all manufacturers are aware of these situations, so any claims due to incorrect maintenance procedures are much less likely to be successful.
We build this bike to a 100% complete state in our workshop before dispatch to ensure all items are manufactured correctly and nothing is missing, but we do have to remove some parts to ensure there is no damage during transit. You will need some basic tools (usually 4mm, 5mm, 6mm and 8mm allen keys and a 15mm spanner) for final assembly upon arrival. We have a video guide here to help, but please don't hesitate to contact us if you require any further assistance.
