This bike is built in our workshop before dispatch, and we often have a queue. The current lead time can be seen by adding this bike to your basket. Some basic assembly is required on arrival, we are happy to help if you need.

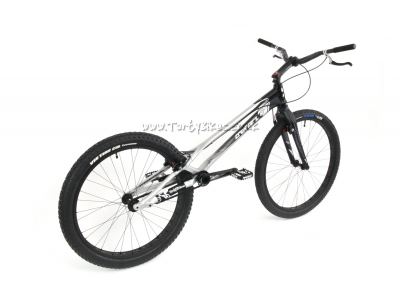

The new 2024 Crewkerz Jealousy, featuring upgraded Crewkerz carbon tensioner!
- Suggested rider height: Large frame 5ft 3in / 1.60m and up
- Suggested rider height: Medium frame 5.8ft / 1.76m or less
- Suggested rider height: Small frame 5.7ft / 1.70m or less
- 2024 bikes feature shorter wheelbase based on feedback from team riders!
- As used my multiple UCI World Champion, Jack Carthy!
Building on the hugely successful design that has won multiple world cups in the hands of Jack Carthy and European championships with Oliver Widmann the Jealousy 26" continues to be the bike of choice for the best riders in the world.
- 2024 bikes feature a shorter wheelbase than 2023 models, based on feedback from team riders, to better suit modern UCI competition.
- New for 2024, increased tube thickness in key strength areas improves frame strength and stiffness compared with older models.
- New Crewkerz carbon chain tensioner tucks further up towards the drive side chain stay offering better clearance, weighing just 30g!
- Stylish graphics look amazing with a matt finish black fading to a brushed aluminium and Crewkerz decals.
- Frame weight remains class leading whilst still retaining the strength the Jealousy is known for.
- Top and down tube profiles are optimised to ensure the best possible weld contact area, dent resistance and rider/obstacle clearance.
- Bolt through axles front and rear for ultimate stiffness.
- Revised and improved splined AS30 crank set with incredibly stiff bottom bracket area.
- One-piece brake mount and tyre arch for extreme rear brake stiffness.
- Fully integrated 1.5" to 1 1/8" tapered head tube on the new 2024 frames looks neater, and saves weight!
- Splined 135 click freewheel with extra strong springs and splined interface, protected by a re-designed bash ring.
- Hashtagg rims front and rear offer the best performance for competition riding with a parallel braking surface and strong, light design.
- Tyres from Vee Tire Co front and rear offer fantastic grip and are super light.
- Available in Small, Large and Medium size frames.
Frame and Fork
- Frame: Crewkerz Jealousy Ultimate

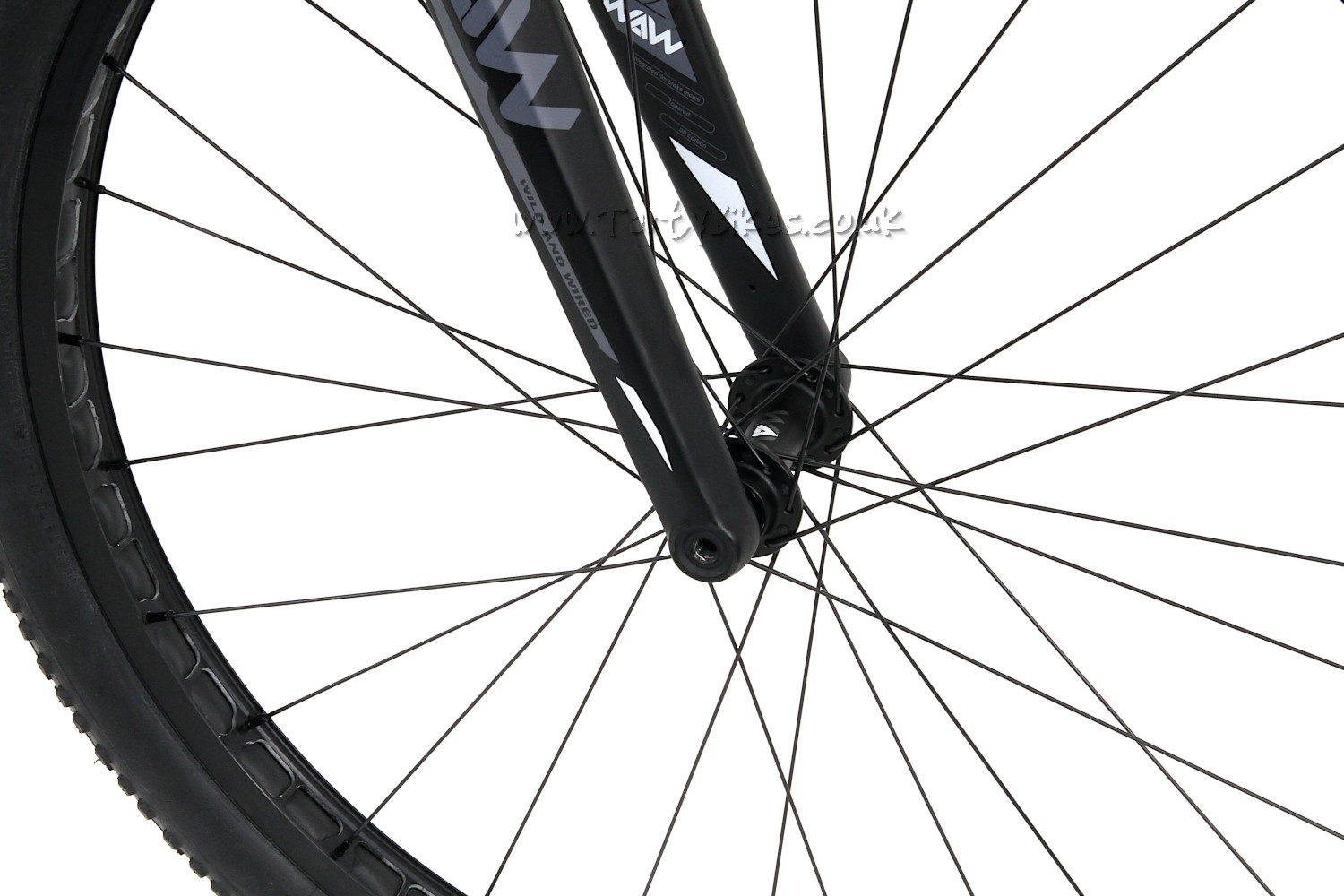

- Fork: Crewkerz WAW Carbon 26", reinforced 4-Bolt mount with 9mm bolt through axle, tapered steerer tube and integrated crown race
Wheels
- Front hub: Crewkerz sealed bearing, 9mm bolt through axle
- Rear hub: Crewkerz sealed bearing, 12mm bolt through axle, splined sprocket interface
- Chain tensioner: Crewkerz Carbon Sprung Tensioner
- Front rim: Hashtagg, 28h, H-profile single wall, 32mm wide
- Rear rim: Hashtagg, 32h, H-profile single wall, 47mm wide
- Spokes: Double butted, black
- Nipples: Aluminium, anodised black.
- Rim tape: Bonz, black
- Inner tube (front): Maxxis
- Inner tube (rear): Maxxis
- Front tyre: Vee Tire Co, The National - WaW Edition, 26" x 2.0"
- Rear tyre: Vee Tire Co, Trax AM - Synthesis, 26" x 2.5"
Brakes
- Front brake: Magura HS33 with Trialtech Carthy Signature lever. New Crewkerz HS rim brake pads!
- Rear brake: Magura HS33 with Trialtech Carthy Signature lever. New Crewkerz HS rim brake pads!
- Brake clamps: Crewkerz WAW - these use cylindrical washers. Standard plastic Magura cylindrical washers are supplied, if you wish to upgrade to alloy ones, we sell the Trialtech cylinder washers here. If you would like these fitted during the build, add some to your order, and let us know in the order notes!
Drivetrain

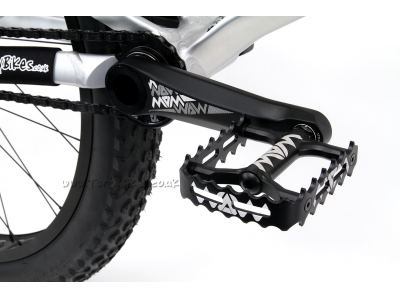

- Cranks: Crewkerz WAW, 170mm, with integrated axle and splined system freewheel
- Freewheel: Crewkerz WAW, 18t, 135 engagements
- Chain: KMC Z1eHX, Black
- Rear Sprocket: Crewkerz Splined, 15t
- Pedals: Crewkerz Single Caged
- Bottom bracket: AS30 with aluminium axle, unique to Crewkerz, offering larger bearings and a stiffer interface
- Bashring: Crewkerz WAW
Steering
- Headset: Internal style, sealed bearing, 1 1/8" top and 1.5" bottom
- Stem: Crewkerz WAW Ultimate, 145mm x 20°
- Grips: Crewkerz Foam
- Handlebars: Crewkerz WAW Ultimate Carbon 102mm Riser
Small Frame Geometry (measured by TartyBikes)
- Wheelbase: 1060mm
- Chainstay: 380mm
- BB Height: +65mm
- Head Angle: 72°
- Centre of BB shell to centre top of head tube: 655mm
Reach: 500mm
Stack: 418mm
- Weight: 8.66kg with pedals.
Medium Frame Geometry (measured by TartyBikes)
- Wheelbase: 1070mm
- Chainstay: 380mm
- BB Height: +65mm
- Head Angle: 72°
- Centre of BB shell to centre top of head tube: 672mm
Reach: 510mm
Stack: 420mm
- Weight: 8.76kg with pedals.
Large Frame Geometry (measured by TartyBikes)
- Wheelbase: 1080mm
- Chainstay: 380mm
- BB Height: +65mm
- Head Angle: 72°
- Centre of BB shell to centre top of head tube: 675mm
Reach: 520mm
Stack: 424mm
- Weight: 8.80kg with pedals.
This bike is supplied with a 6 month warranty covering manufacturing and materials defects. The warranty does not cover mistreatment or poor maintenance. Please ensure all the details on the warranty sheet supplied with the bike are adhered to. Certain circumstances (such as stripped threads or rounded crank arm tapers) only occur due to a lack of correct maintenance and all manufacturers are aware of these situations, so any claims due to incorrect maintenance procedures are much less likely to be successful.
We build this bike to a 100% complete state in our workshop before dispatch to ensure all items are manufactured correctly and nothing is missing, but we do have to remove some parts to ensure there is no damage during transit. You will need some basic tools (usually 4mm, 5mm, 6mm and 8mm allen keys and a 15mm spanner) for final assembly upon arrival. We have a video guide here to help, but please don't hesitate to contact us if you require any further assistance.
