- Fitted as standard on selected models of Inspired Fourplay and Hex Team bikes!
- Super strong and stiff forged, 7000 series aluminium construction.

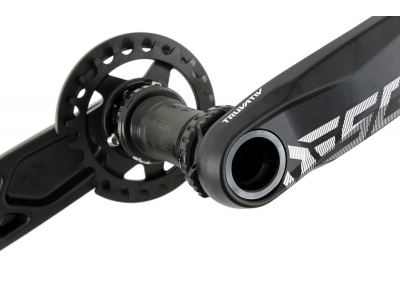

- Tested and proven crank set from Tuvativ as fitted to Inspired Fourplay Team and Hex Team complete bikes!
- Forged 7000 series aluminium construction is stiff and strong, an alloy DUB spindle keeps overall weight low.
- For a stronger connection, the alloy BB axle is pressed into the drive side crank arm, which improves stiffness too.
- Supplied SRAM DUB BB is compatible with 68mm or 73mm BB shells.
- The
IceToolz M097 BB Tool is required to fit the DUB BB (sold separately).
-
For use with a 73mm BB shell, you won't require any spacers to fit the BB. For frames with a 68mm shell you will need to use one spacer on each side of the shell. These are not supplied with the cranks are sold separately here. You must also use the wavy profile spacer between the drive-side cup and the bash ring.
- This 68mm or 73mm dimension refers to the width (end to end) of the frame tube where the bottom bracket fits in, please measure your frame before ordering!

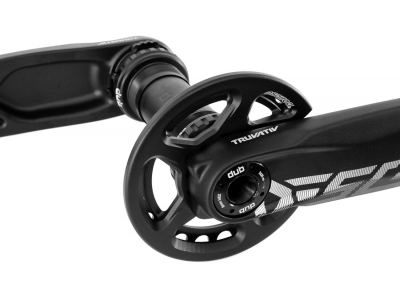

- Pimp CNC-machined bash ring is constructed from 7075 alloy, and has an integrated 22t chain ring.
- Recommended for use with 3/32" chains, 1/8" chains are likely to 'scrub' the back of the bash ring.
- Suitable for use with a wide range of frames, large crank clearance of 144mm makes the Descendant ideal for use with alloy frames with wide rear triangles.
- Supplied as a kit including crank arms, self-extracting crank bolt, BB, BB spacers, wavy spacer for drive side crank and bash ring.
- 175mm arm length only.
- Supplied without box.
- Weight - 702g including BB and wavy spacer.
