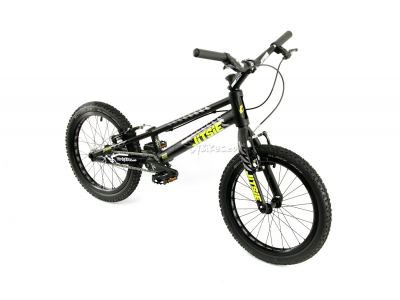

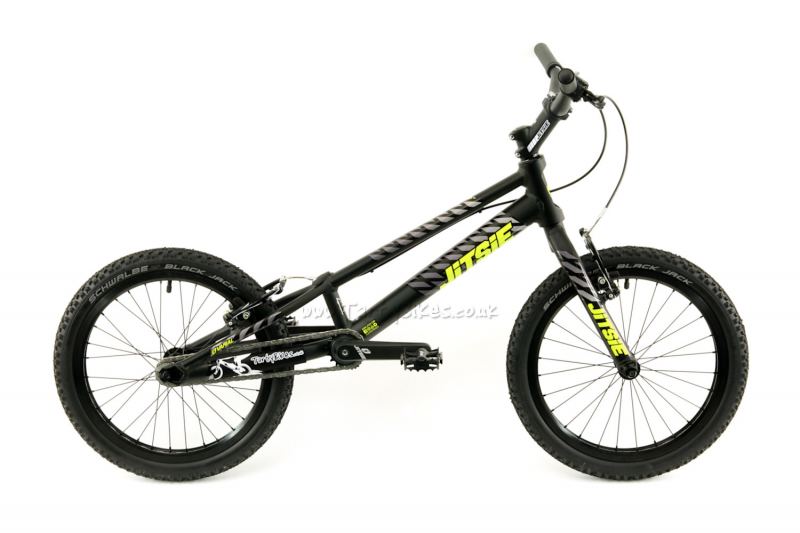

Jitsie Varial 840 Kids 18"

Product code: 13705

This bike is built in our workshop before dispatch, and we often have a queue. The current lead time can be seen by adding this bike to your basket. Some basic assembly is required on arrival, we are happy to help if you need.

New graphics for 2022!

Suitable for young riders, approximately 3ft 6in/1.06m - 4ft 6in/1.37m tall.
Great value for money.
Aimed to bridge the gap between the Varial 740 18" and 920 20"!

- A new addition to the Varial bike range from Jitsie, the 840 18" Kids Bike!
- Developed with their entire team of riders to ensure they perform at the highest level, having already been ridden to victory at competitions around the world.
- Parts kits designed around Jitsie's popular aftermarket parts ensure good durability, weight and strength.
- Suitable for young riders, approximately 3ft 6in/1.06m - 4ft 6in/1.37m tall.
- Please note: The spec is completely fixed at this price.

Frame and Forks
- Frame: Jitsie Varial 840 18"
- Forks: Jitsie Varial Alloy 18"

Wheels
- Front hub: Jitsie HS100
- Rear hub: Sealed bearing HS116
- Front rim: Jitsie 18", 28h
- Rear rim: Jitsie 18", 32h
- Spokes: Plain Gauge
- Nipples: Alloy
- Rim tape: Jitsie Rim Tape
- Inner tube (front): Jitsie Light (0.9mm)
- Inner tube (rear): Jitsie Light (0.9mm)
- Front tyre: Schwalbe Blackjack, 18 x 1.9"
- Rear tyre: Schwalbe Blackjack, 18 x 1.9"

Brakes:
- Front brake: Alloy V-Brake
- Rear brake: Alloy V-Brake

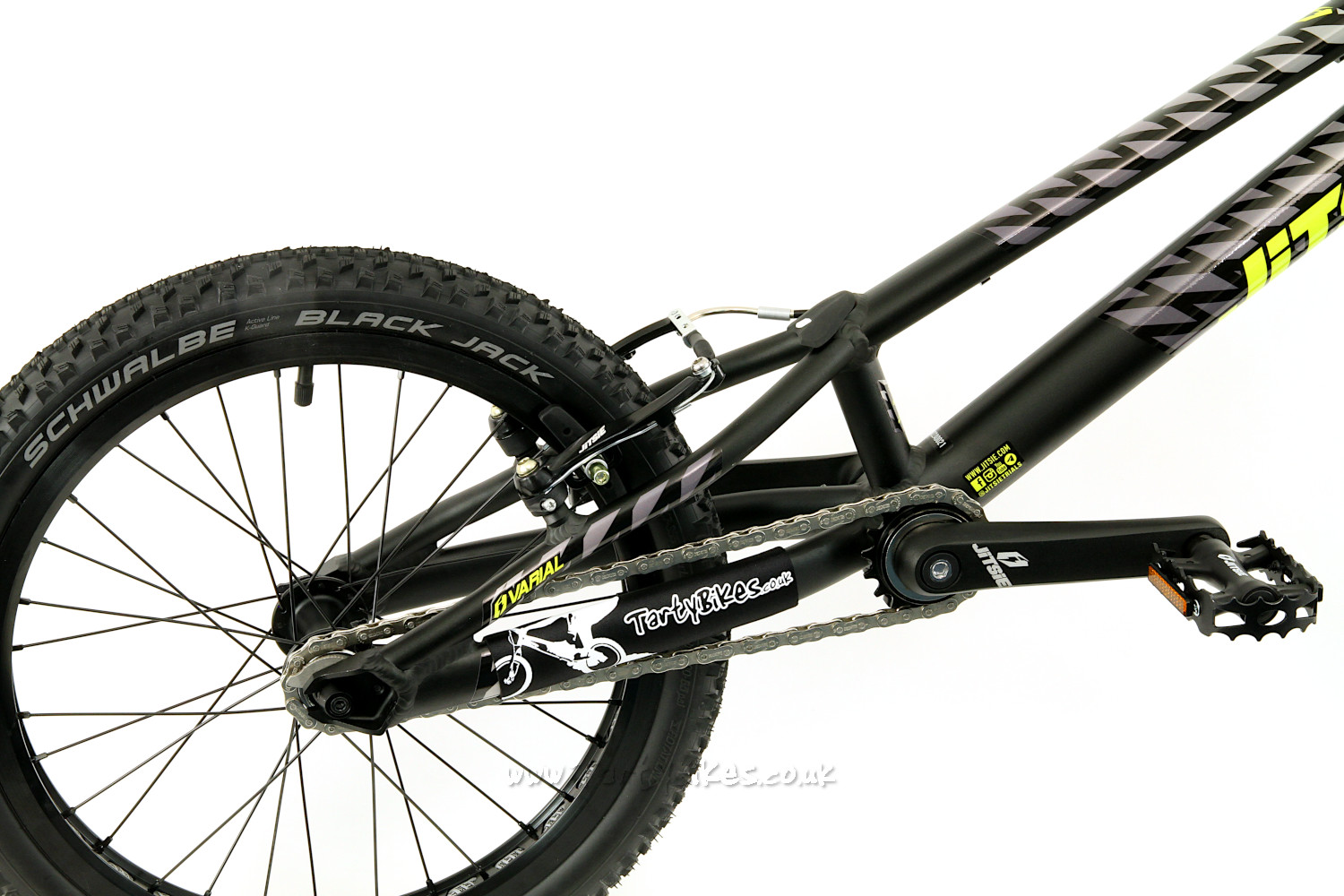

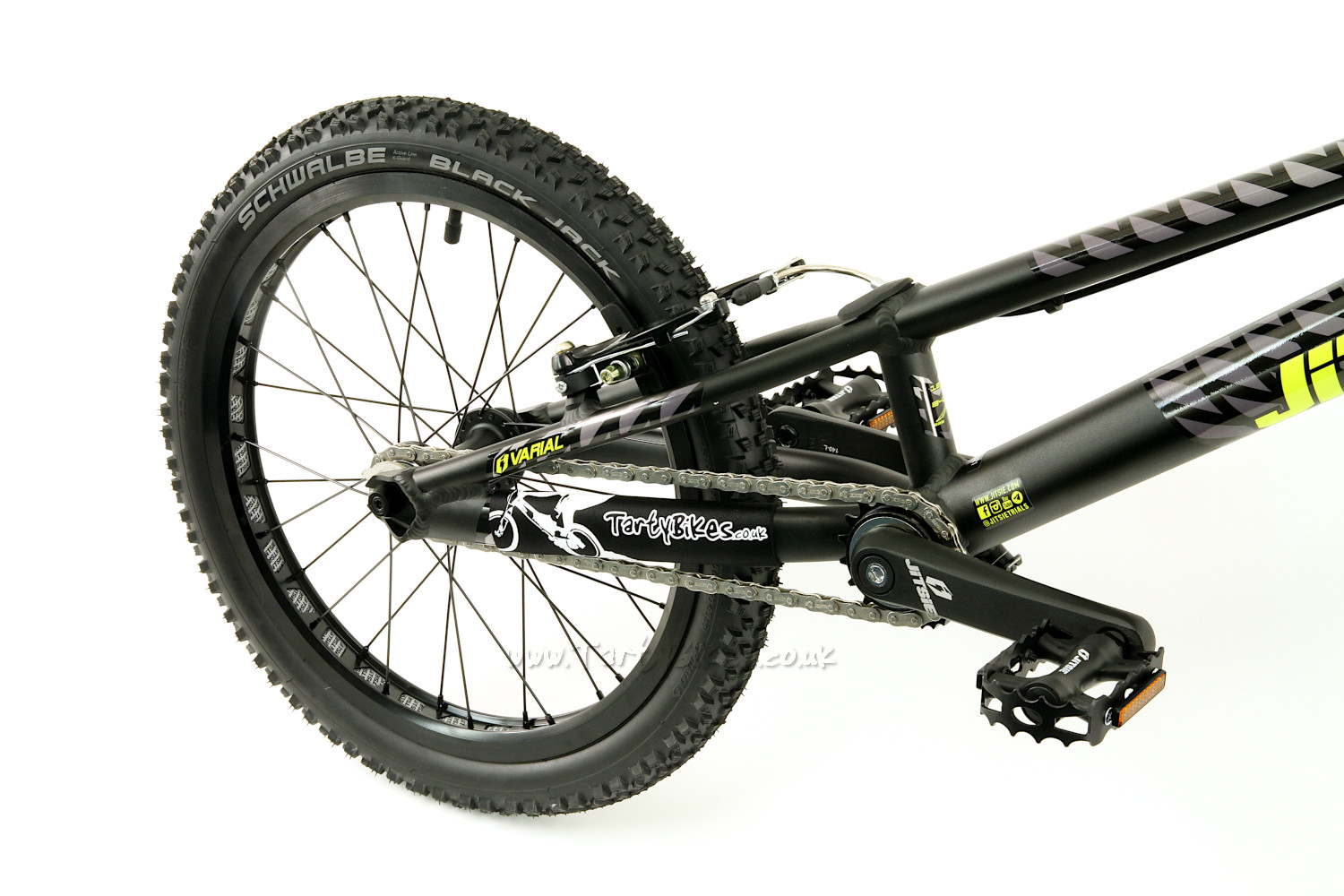

Drivetrain
- Cranks: Jitsie Forged Square Taper, 140mm
- Bottom bracket: Jitsie Square Taper, 124.5mm axle
- Freewheel: Jitsie 108.9, 17t
- Chain: KMC Z610 HX 3/32"
- Rear Sprocket: Jitsie Steel, 12t
- Chain tensioner: Jitsie Alloy / Steel Snail Cams
- Pedals: Jitsie Caged, Black
- Bashplate: Jitsie Light Bashplate

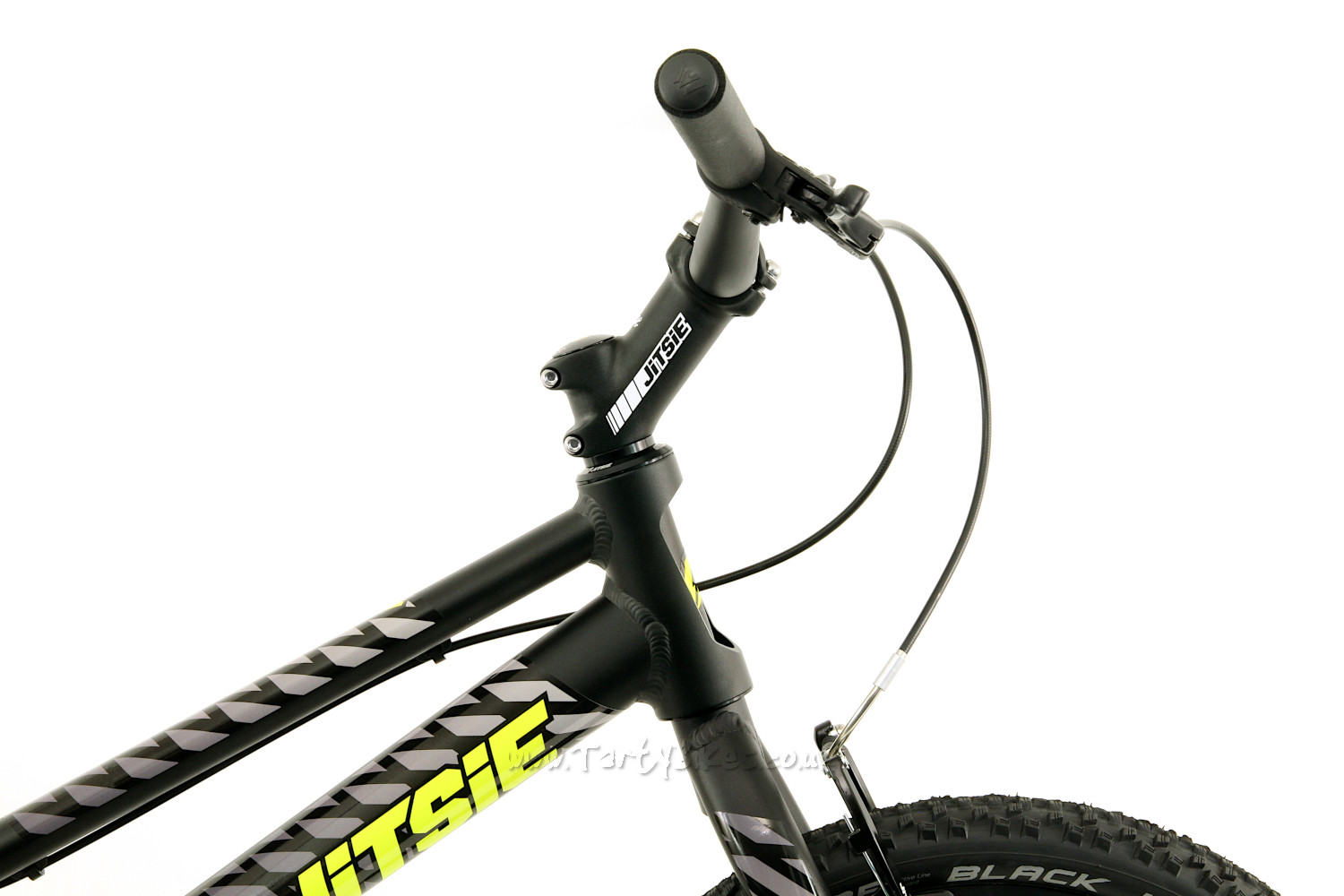

Steering
- Headset: Jitsie Integrated
- Stem: Jitsie Forged, 90mm
- Headset Spacers: Jitsie Alloy, 5mm
- Grips: Rubber, Black
- Handlebars: Jitsie Alloy Riser, 75mm Rise

Geometry:
Wheelbase: 840mm
Chainstay Length: 325mm
BB Rise: +45mm
Headtube Angle: 71.5°
Centre of BB to centre top of head tube: 490mm
Reach: 342mm
Stack: 347mm
Bottom bracket height (centre of BB axle from the floor): 275mm
Centre of end of handlebars to floor: 790mm

Weight: 6.98kg

This bike is supplied with a 6 month warranty covering manufacturing and materials defects. The warranty does not cover mistreatment or poor maintenance. Please ensure all the details on the warranty sheet supplied with the bike are adhered to. Certain circumstances (such as stripped threads or rounded crank arm tapers) only occur due to a lack of correct maintenance and all manufacturers are aware of these situations, so any claims due to incorrect maintenance procedures are much less likely to be successful.

We build this bike to a 100% complete state in our workshop before dispatch to ensure all items are manufactured correctly and nothing is missing, but we do have to remove some parts to ensure there is no damage during transit. You will need some basic tools (usually 4mm, 5mm, 6mm and 8mm allen keys and a 15mm spanner) for final assembly upon arrival. We have a video guide here to help, but please don't hesitate to contact us if you require any further assistance.
